Electrical and Electrical Technology Experimental desk

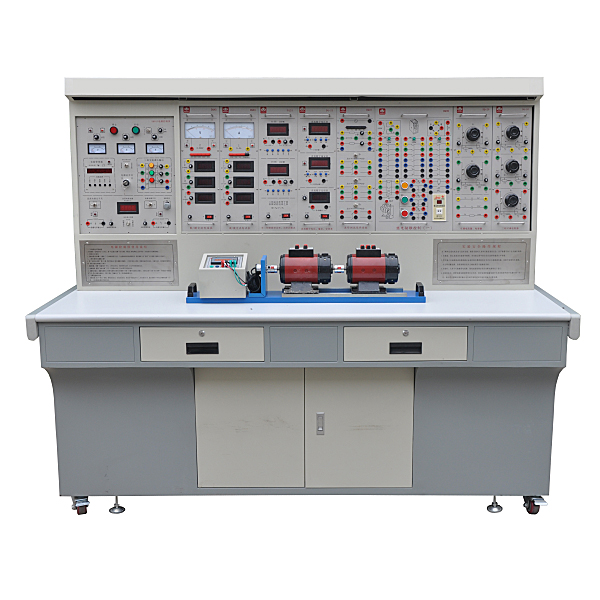

"Electrical and Electrical Technology Experimental Device" is a novel comprehensive experimental device designed by the company. Requirements on the outline of course experimental outlines such as electric contact control "," programmable controller technology "and" factory electrical control ". It is particularly suitable for the update and reconstruction of the existing motor and electrical technology experimental equipment existing motors and electrical technology experimental equipment in colleges and universities. Graduate development of new experiments or conducting good experimental conditions for scientific research.



2. Features



1. Comprehensive strong This device integrates all experimental projects of motor and electrical courses in various domestic institutions.



2. Strong adaptability can meet the experimental teaching of the corresponding courses of various schools. The depth and breadth of the experiment can be flexibly adjusted as needed. The popularization and improvement can be organically combined according to the process of teaching. The device adopts a component structure to replace the convenience. If you need to expand the function or develop new experiments, you can just add a component and never eliminate it.



3. The whole set of strong support is complete from the instrument, special power supply, motor, and other experimental components to the experimental connection. The performance and specifications of the supporting components are closely combined with the needs of the experiment.



4. Strong intuitive experimental pendies adopt a separatist structure. The component panels are significant, the graphic line is clear, each pendant task is clear, and the operation and m--ntenance are convenient.

1. Equipment overview

ZRFT-2014B escalator tr--ning devices include the real escalators, handr--ls, ch--ns, tablets, safety protection, electrical control boxes, etc. The escalator is driven by power and can transport passengers' open transportation machinery in a cert--n direction. It has the characteristics of compact structure, safe and reliable, simple and convenient installation and m--ntenance. Therefore, in places with large and concentrated passenger flows, such as stations, docks, shopping malls, etc., are widely used. The escalator equipment has transportation capacity, and each transmission parts are refined by high -quality metal parts, which is consistent with the actual escalator structure. Electrical skills tr--ning assessment experimental device is for PLC electrical control teaching and assessment of the major, technical institutions, vocational schools, and related majors of vocational schools, social electrical tr--ning, and county and electricity appr--sal (station) of various counties and cities The development can be used for class demonstration, elevator electrical control scheme and experimental internship. The tr--ning device has a hidden setting of dozens of circuit f--lures. Students use the schematic diagram to analyze and judge the fault, comprehensively and truly understand the elevator electrical f--lure and exclusion. It is an ideal equipment for skill tr--ning and assessment. The teaching effect is really significant.

2. Technical parameters

1. Enter power supply: three -phase and four lines (or three -phase and five lines) AC380V ± 10%, industrial frequency 50Hz 50Hz

2. The whole machine capacity: <8KVA

3. R--se height: 2300mm

4. Control method: PLC+inverter self -starting control system.

5. Monitoring system: Basic monitoring system for voltage and current conditions.

6. F--lure module: Configure 30 -bit fault switches, simulate the common fault phenomenon of escalators, and set the demonstration function.

7. Safety protection: It has the function of protecting ground, overload, overcurrent, leakage current, and electrical safety meets national standards.

8. Dimensions: 7500mm (long) × 3000mm (width) × 3500mm (high)
