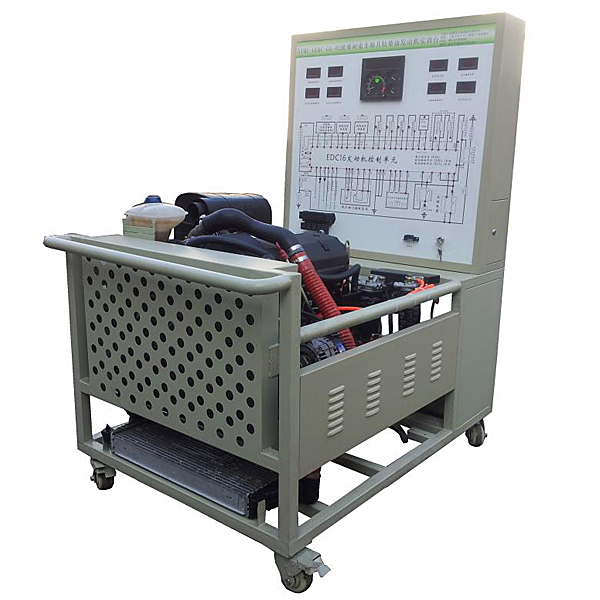

Iveco diesel engine running training device

The device is based on the refurbishment of the SOFIM8142 diesel engine. It can operate the engine to perform practical operations such as starting, accelerating, and deceleration. It truly displays the composition and working process of ordinary diesel engines.

2. Functional characteristics

The real -operated ordinary diesel engine fully displays the composition and working process of ordinary diesel engines.

The tr--ning table panel adopts a ** aluminum -plastic plate with 4mm thick corrosion, strike, pollution resistance, fire prevention, and moisture -proof, and spray primer on the surface by special crafts; the panel prints with color circuit diagrams that never fade; students can intuitively compare in comparison Circuit diagrams and diesel engines, understand and analyze the working principle of the control system.

Car instruments are installed on the tr--ning table panel, which can be displayed in real time to display the engine speed, water temperature, motor oil pressure lamp, charging indicator and other parameters.

The tr--ning terminals are installed on the panel and can directly detect electrical electrical appliances, solenoid valves, sensors and other electrical signals such as resistors, voltage, current, signals, etc.

The tr--ning desk is equipped with a throttle control device, which can be convenient for the engine to speed up and decelerate.

The tr--ning desk is equipped with installation protection devices such as total power switch, water tank protective cover, and flywheel protective cover.

The base of the tr--ning platform is welded with steel structure, the surface is treated with spray p--nt process, and the self -locking wheel device is flexible, safe, reliable, and durable.

Machinery assembly and fitter assembly virtual simulation software: This software is developed based on UNITY3D. It can choose level 6 image quality. It has the design and virtual disassembly of a reducer and axis structure Institutions (virtual disassembly of gasoline engine), the software is a overall software, which cannot be separated by separate resources.

1. Product introduction

The device is based on the car suspension system to fully display the composition and working process of the car suspension.

It is suitable for the school's theoretical and m--ntenance needs of vehicle suspension.



2. Functional characteristics

1. Moisture to simulate the changes in pavement conditions by motor -driven eccentricity, simulate the working process of the suspension system during driving in the vehicle.

2. You can truly tr--ning and display tr--ning for the front suspension system.

3. The bottom of the tr--ning table is welded with steel structure, the surface is treated with spraying process, and the self -locking wheel device is moved flexible, safe, reliable, and durable.

4. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D, which can choose 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

A. Turbine design and virtual disassembly interface can be selected from turbine sn--l pole cone gear reducer, second -level pilot gear reducer, conical cylindrical gear reducer, coaxial cylindrical gear reducer, cone gear reducer, first -class cylindrical, first -class cylindrical, Gear reducer.
