The front bridge and rear bridge assembly disassembly training device

Author： Time：2024-02-13 Hits：

The front bridge and rear bridge assembly disassembly tr--ning device,Drive angle measurement tr--ning device

1. Function Introduction

1. Use Volkswagen Jetta front and rear bridge assembly (complete accessories, easy to disassemble), and install it on a mobile table. The installation of the original car is convenient for students to disassemble and assemble from different angles.

2. The tablet uses high -intensity steel structure welding, and the surface is sprayed on the surface. There is a self -locking foot wheel at the bottom, which can be moved for easy teaching.

two. Technical specification

Equipment shape: 100 × 500 × 1100mm (long × width × height)

Color: 7032

Steel pipe: 40*40*3mm

Universal foot wheel

The first two universal band lock function foot wheels

2 After the two thousand -facing foot wheels

The foot wheel and the table frame are fixed with the M6*4 screws, which is convenient for equipment m--ntenance and m--ntenance.

Foot wheel: 60mm × 50mm (diameter × width)

Foot wheel support: 1.0T

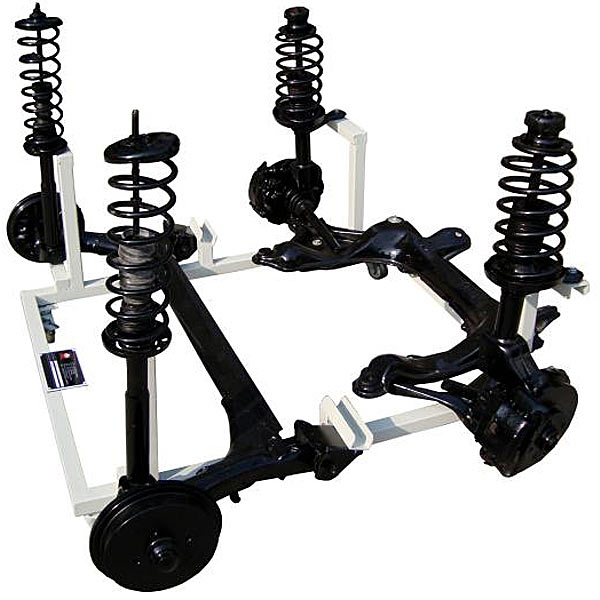

The front bridge and rear bridge assembly disassembly tr*ning device(图1)

The front bridge and rear bridge assembly disassembly tr--ning device,Drive angle measurement tr--ning device

The m--n parameters

Material: 45#Steel measurement range: (1) front angle, (2) rear angle, (3) quantity inclination angle, (4) m--n (deputy) partial angle

Specification size: long 250X width 250x height 250mm

One and function

1. Front angle measurement

2. Rear angle measurement

3. Measurement of quantitative inclination angle

4. Master (deputy) partial angle measurement

5. Measurement accuracy ± 1 ° scale disk calibration accuracy ± 1 °

2. Configure six knives:

1. Silk knife (thread car knife),

2. Digging a knife (digging inner holes),

3. 45 ° car knife (car circle, flat -end surface, chamflow),

4. 90 ° car knife (st--nless car knife, car round, flat -end surface),

5, 75 ° car knife (st--nless car knife, car circle, flat -end surface),

6. Cut the knife (cut off, cut tank)

3. M--n technical parameters:

1. Production materials: Made with 45 ′ steel.

2. Standard specifications: 250 × 250 × 250mm.
