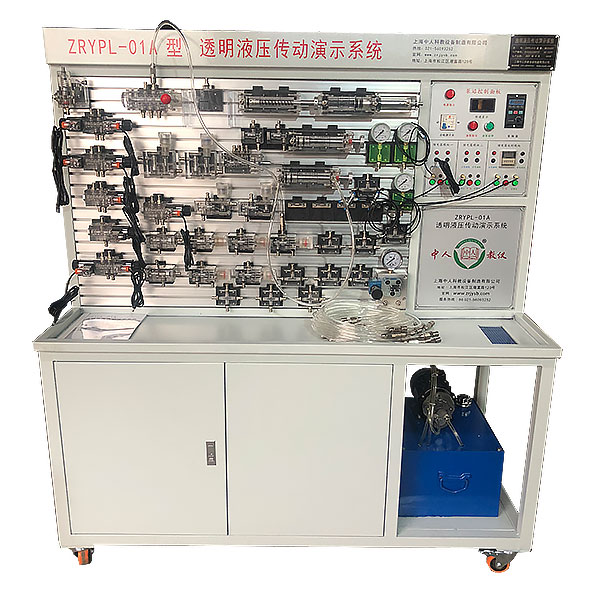

Transparent hydraulic training device



1. Power: AC220V 50Hz



2. DC power supply: Input AC220V output DC24V/2A



3. Hydraulic experimental oil pump motor power: 250W, equipped with a special motor speed regulator, speed regulating range: 0-1700R/min



4. At the experimental work, the noise of 1.5m far away from the hydraulic experimental desk ≤58dB.



5. Experimental oil circuit fluid flow pressure requires 0.5-1MPa (oil pump ** pressure: PMAX = 2.5MPa)



6. Electromagnetic direction valve: DC24V suction 30n



7. Experimental table appearance Size: 1330mm × 650mm × 1750mm



8. Virtual multi -purpose table parameters:



AC voltage voltage range gear division: 10, 50, 2050, 1000



DC voltage gear division: 0.25, 1, 2.5, 10, 50, 250, 1000



Om file points: X1, X10, 100, 1000, 1k, 1K, X10K, X100K



Current meter gear: 50μA, 0.5, 5, 50, 500



BATT: 1.2-3.6V, RL = 12Ω



Buzz: R × 3



Infrared launch detection function: vertical angle ± 15 ° distance 1-30cm



Triode measurement hole



2. M--n features



1. The transparent hydraulic transmission demonstration system consists of components such as experimental tables, experimental desks, hydraulic components, and electrical control devices.



2. The experimental table and the experimental desk are iron double -layer sub -light -dense -densely spraying structures, and hydraulic components are stored in the experimental desk.



3. Preparation of hydraulic components: Each hydraulic element is equipped with a installation bottom plate, which can be convenient and randomly placed on the aluminum alloy panel (the panel with the aluminum alloy profile structure of the form of the "T" groove). The oil circuit is overlapped with a fast conversion. It is convenient for disassembly and does not leak oil.

Purpose:

The experiments of --r regulation such as heating, humidification, cooling, and drying can be heated on the --r. The --r quality treatment includes: a cooler, a water -like type.

M--n configuration:

Plastic and organic glass --r ducts; pore board flowmeter, differential pressure sensor, rectification plate, heater, st--nless steel humidifier, sprayer, cooler, low noise shaft flow fan, temperature test system, humidity test system, compressor, compressor machine , Concrete, titanium purse evaporator, liquid storage tank, copper hand valve, st--nless steel humidified water tank, anticorrosive pump, rotor flowmeter, 16 -way signal input inspection instrument display temperature, humidity, wind difference, electrical control box, electrical control box, electrical control box, electrical control box, St--nless steel bracket.

Technical Parameters:

1. Input power supply: three -phase AC380V ± 10% 50Hz, power of 5.0kW.

2. Temperature: 10 ～ 25 ℃, pressure: 0 ～ 15MPa, humidity: 10 ～ 40RH%, flow: 0 ～ 1000L/h.

3. Compressor: 950kcal/n, refrigerant R12, heating capacity 3.0kW.

4. The heat exchange area of the evaporator: 15m2, heat exchanger heat exchange area: 15m2.

5. Evapoor water tank: size 650 × 400 × 450mm, 304 st--nless steel.

6. Low noise axis flow fan: flow of 2000m3/h, power 370W.

7. Pump parameters: traffic: 30L/min, r--sing: 20m, power: 370W. The flow meter range is 40-400L/h.

8. The temperature is measured by the high -precision temperature sensor. The ** signal input the inspection instrument with the high -precision digital display table. The display of the test parameters such as the temperature, resistance, flow rate, and power of the display, and the manual wind door adjusts the --r volume.

9. Dimensions: 2800 × 600 × 1900mm.

10. Single -chip machine, PLC programming design and controlling virtual simulation software:

This software is developed based on Unity3D, with built -in experimental steps, experimental guidance, circuit diagram, component list, connecting lines, connecting power supply, circuit diagram, scene resetting, return and other buttons. The three -dimensional machine tool model movement is operated on the front -facing and reverse motion button. In the connection line state, the three -dimensional machine tool model can be enlarged/reduced and translated.
