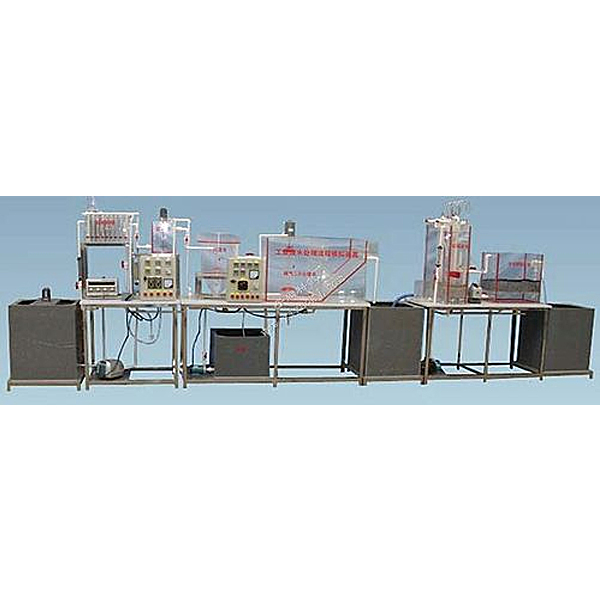

Industrial wastewater treatment process simulation experimental device

In order to understand the unit operation technology commonly used in industrial wastewater, master the processing process composed of these units, and observe the moves of wastewater, sludge and --r during the processing process, especially the experimental device for scientific research and teaching development of water treatment. The entire set of device is automatically controlled by the inflow of its wastewater, adding medicines, aeration, anti -flushing, emissions, and mud, etc. of its wastewater. Monitor each section of the water treatment effect, the whole set of equipment is used to use, can also be used separately, and each sewage pool has a development sample.

2. M--n technical indicators and parameters:

1. Environmental temperature: 5 ℃ ～ 40 ℃

2. Treatment of water: 5 ～ 15L/h

3. Design in and out of water quality range:

Inlet water BOD 400 ～ 800mg/L out of water 40 ～ 80 mg/L

COD 600 ~ 1200mg/L. Demonive water 60 ～ 120 mg/

Enter the water SS 100 ~ 300mg/L out of water 10-50 mg/L

Inlet water pH 6-9 out of water 6-9

4. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, power of 1500W, safety protection: ground protection, leakage protection, overcurrent protection

5. Total size of the device: length × width × height = 5200mm × 500mm × 1700mm

3. M--n configuration:

1. 1 original water tank: white PP plate material, 10mm thickness, 600 × 400 × 500mm, empty valve installed on the bottom plate, which is convenient for cleaning the water;

2. 1 water tank: white PP plate material, 10mm thickness, 400 × 400 × 500mm, empty valve is installed on the bottom plate, which is convenient for cleaning the water;

3. 1 set of paddles from the original water tank mixing motor, 304 st--nless steel mixing paddle; (power 25W, speed 120rpm), (including 1 tone speeder)

4. 1 set of micro -electrolytic grooves, transparent organic glass material, wall thickness 10mm, 250 × 200 × 250mm, 1 DC stabilization power supply,

5. The concrete reaction slot, transparent organic glass material, wall thickness 7mm, ø 200 × 300mm;

6, vertical stream sedimentation tank, transparent organic glass material, wall thickness 8mm, ø 250 × 350mm;

7. Angellery combined with the second Shenchi, transparent and organic glass material, 10mm wall thickness, 450 × 350 × 600mm, aerated --rment device,

8. Renoic filter pool, transparent organic glass material, wall thickness 10mm, 450 × 350 × 600mm, 1 units with pumping vacuum pumps,

9. activated carbon suction pool, transparent organic glass material, wall thickness 10mm, 350 × 300 × 450mm, anti -rushing device
