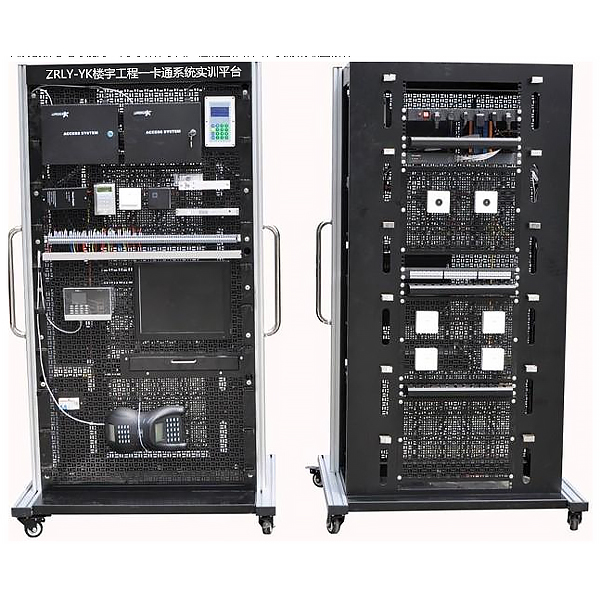

Building project one cartoon system experimental desk

Building engineering one -cartoon system tr--ning platform Based on the development trend and characteristics of the intelligent construction industry, combined with the functions and applications of building intelligent technology, with the work tasks of building 5A subsystems, based on building intelligentization, industrial automation, computer network communication, comprehensive comprehensive The comprehensive use and expansion of various technologies such as wiring and system integration have met the system of related majors of related majors such as technicians and vocational colleges with intelligent equipment installation and operation, building equipment installation, automation control, computer network and communication system engineering system Demonstration, skills display, work task design and planning, tr--ning, process and results assessment, assessment, appr--sal, competition, engineering project design and graduation design, etc. , Wiring, programming, debugging, operation, m--ntenance and m--ntenance, etc.), design planning, communication, teamwork, efficiency awareness, and innovative thinking, while cultivating its rigorous work style and good occupational literacy.

2. Technical indicators

(1) Power input: single -phase three -line (third party ground ground), AC220V ± 10%, 50/60Hz;

(2) Safety protection: grounding, leakage (action current ≤30mA), overvoltage, overload, short circuit;

(3) The power consumption of the whole machine: ≤300W;

Dimensions (wide × height × depth): 1060mm × 1900mm × 800mm (industrial aluminum profile bracket);

3. Tr--ning project

1) System installation, wiring, wiring, programming, commissioning, operation, m--ntenance and m--ntenance;

2) Setting, detection and exclusion of line f--lure;

3) Different types of defense areas and tr--ning their parameters;

4) Different cloth withdrawal types and tr--ning their parameters;

5) Knowing and familiar with various IC card access control management system equipment, configuration and functions;

6) Connection and debugging of system equipment: forming a single -door control system, a double -door control system, a single -door entry and exit card control system, a single and double -door combination or a single and double -door linkage control system;

7) Software installation, card reader test, controller address settings, etc. of the IC card access control management system;

8) Run management software modification system settings, controller settings, user settings, etc.;

9) The understanding, distribution and management of different functional IC cards (user cards, privileges, management cards);

Purpose:

The experiments of --r regulation such as heating, humidification, cooling, and drying can be heated on the --r. The --r quality treatment includes: a cooler, a water -like type.

M--n configuration:

Plastic and organic glass --r ducts; pore board flowmeter, differential pressure sensor, rectification plate, heater, st--nless steel humidifier, sprayer, cooler, low noise shaft flow fan, temperature test system, humidity test system, compressor, compressor machine , Concrete, titanium purse evaporator, liquid storage tank, copper hand valve, st--nless steel humidified water tank, anticorrosive pump, rotor flowmeter, 16 -way signal input inspection instrument display temperature, humidity, wind difference, electrical control box, electrical control box, electrical control box, electrical control box, St--nless steel bracket.

Technical Parameters:

1. Input power supply: three -phase AC380V ± 10% 50Hz, power of 5.0kW.

2. Temperature: 10 ～ 25 ℃, pressure: 0 ～ 15MPa, humidity: 10 ～ 40RH%, flow: 0 ～ 1000L/h.

3. Compressor: 950kcal/n, refrigerant R12, heating capacity 3.0kW.

4. The heat exchange area of the evaporator: 15m2, heat exchanger heat exchange area: 15m2.

5. Evapoor water tank: size 650 × 400 × 450mm, 304 st--nless steel.

6. Low noise axis flow fan: flow of 2000m3/h, power 370W.

7. Pump parameters: traffic: 30L/min, r--sing: 20m, power: 370W. The flow meter range is 40-400L/h.

8. The temperature is measured by the high -precision temperature sensor. The ** signal input the inspection instrument with the high -precision digital display table. The display of the test parameters such as the temperature, resistance, flow rate, and power of the display, and the manual wind door adjusts the --r volume.

9. Dimensions: 2800 × 600 × 1900mm.

10. Single -chip machine, PLC programming design and controlling virtual simulation software:

This software is developed based on Unity3D, with built -in experimental steps, experimental guidance, circuit diagram, component list, connecting lines, connecting power supply, circuit diagram, scene resetting, return and other buttons. The three -dimensional machine tool model movement is operated on the front -facing and reverse motion button. In the connection line state, the three -dimensional machine tool model can be enlarged/reduced and translated.
