Cabinet cross -flow speed adjustment training device



The "ZRBP-03C type of DC speed regulation tr--ning assessment device" is developed for the tr--ning and assessment of the skill tr--ning and assessment of the m--ntenance of electricians. The tr--ning equipment of courses such as "DC Speed" has the function of fault setting and fault exclusion.



2. Technical performance



1. Enter power supply: three -phase and four lines (or three -phase and five lines) ~ 380V ± 10% 50Hz



2. Working environment: temperature -10 ℃ ～+40 ℃ relative humidity <85%(25 ℃) altitude <4000m



3. Device capacity: ≤1.5kva



4. Safety protection measures: have functions such as leakage protection and overcurrent protection, and security meets relevant national standards



Third, device equipment

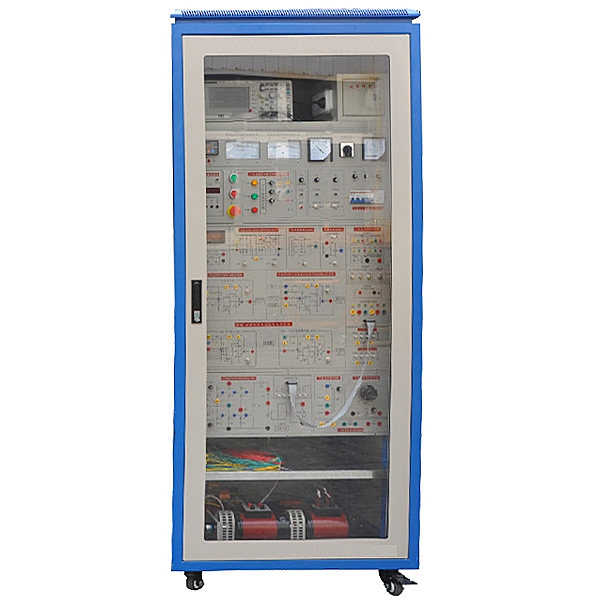

1. Industrial control cabinet



The control cabinet is equipped with glass doors, intuitive and clear. *** The upper part is the oscilloscope placement area. The middle part is the control module installation area, power control and instrument area. The instrument is equipped with a DC voltage meter, a DC current meter, and a digital speed meter (real -time digital display motor speed, at the same time output analog voltage signal); Modules, three -phase synchronous transformers, three -phase current fluid sensors and adjustable resistance loads.



2. speed regulation unit



Motor guide r--l: fixed motor guide r--l, good flatness, non -stress deformation, fine processing, good concentricity, good interchangeability, can ensure that the connection between the motor, the motor, the motor and the generator does not exceed ± 5 wires, the motor The noise is small, and the guide r--l also has a portrayal of a portable handle and a vibration reducing bottom.



DQ09 DC and (he) motivation: 220V, 1.1A, 185W, 1500rpm.



DQ11 three -phase winding asynchronous motor: 220V, 0.5A, 100W, 1420rpm.



DQ07-1 DC generator: 220V, 1.1A, 240W, 1500rpm.

1. Product overview

Comprehensive tr--ning platform for water environmental monitoring and governance technology can meet the "water environmental monitoring and governance", "environmental monitoring and control technology", "environmental engineering technology", "clean production and emission reduction technology", "giving it", "giving giving", "environmental engineering technology", "environmental engineering technology", "environmental engineering technology" Experimental tr--ning teaching in environmental related majors such as dr--nage engineering technology, and meet environmental protection standards. The tr--ning platform should be designed with a modular combination, and at least five modules: at least the water supply process, A/O process, A2/O process, SBR process, and MSBR process. Each module should be able to tr--n independently. It can also be combined into multiple sewage treatment Comprehensive tr--ning for process. The platform should adopt a variety of control methods, which can be manually operated or automatic control. Through the tr--ning platform operation, students can evaluate students related sewage treatment system scheme selection, process design, equipment and component installation, pipeline connection, power and control line design and connection, water treatment process system system debugging and operating capabilities.

Second, system requirements

1. Good materials: The object frame is made of at least 50mm × 50mm st--nless steel square pipe material, and organic glass devices are made of at least 10mm thick blue organic glass. Using a card set connection method, other pipelines adopt a transparent PU pipeline, and the connection is connected with a fast plug -in method.

2. Convenient movement: The bottom of the device is equipped with a universal wheel with a brake.

3. Strong integrity: The reasonable distribution of all devices is fixed on the st--nless steel steel frame, and the object and control system integrated design.

4. Safety protection: It has a leakage voltage and leakage current protection device, which meets national standards; the mixer at the bottom of the steel frame is equipped with an organic glass waterproof protective cover to ensure safety operation.

5. Strong functionality: This system will modularly design the organic glass reactor. During tr--ning, selective installation can be carried out according to the corresponding functions of the organic glass reactor. It is convenient for students to design the processing process, convenient control, automatic control and CRT manual control. The electrical control cabinet wiring uses a wire plug -in connection, which is convenient and safe.

6. Strong expansion: A2/O system components have at least 18 expansion joints, and the SBR system components have at least 10 expansion joints. It can be tr--ned by selecting different extended joints for multiple water treatment processes.

7. Strong controllability: In the system, the speed of the mixer can be controlled according to the DO value; the start and stop of the pump is controlled according to the pH value; the operation of the system is controlled according to the height of the liquid level.

8. The layout is compact and the systemic is strong: the real simulation industrial site layout, the four water pumps are concentrated on the bottom plate of the st--nless steel steel frame, which are arranged vertically. The liquid flowmeter is concentrated on the rear pipe, and it is arranged horizontally. The three panel -type gas flowmeters are concentrated on the front plate operating board, and they are arranged horizontally. The system components are arranged for step -level, and the second sinking pool of the lower layer of the steel frame and the addition of the drug pool are arranged.
