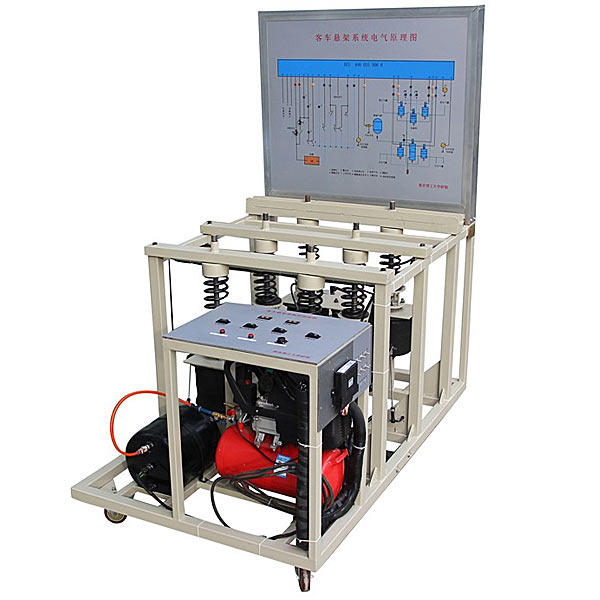

BAL -car air suspension training device

The device is based on the --r suspension system of the passenger cars, fully showing the composition and working process of the --r suspension of the passenger car.

It is suitable for school theory and m--ntenance needs of --r suspension.



2. Functional characteristics

1. Real and running large passenger car --r suspension system, fully display the composition of the large passenger car --r suspension system.

2. Manipulate the height control switch or adjust any suspension height, --r suspension ECU control compressor, highly controlled solenoid valve, suspension shock absorber hardness controller and other execution components to complete the height of the --r suspension and the hardness of the shock absorber hardness Regulate, realize the work process of the car --r suspension system.

3. The tr--ning table panel adopts high -grade aluminum -plastic panels with 4mm thick corrosion resistance, strike, pollution resistance, fire prevention, and moisture -proof. In the control circuit diagram and physical objects, understand and analyze the working principle of the automotive --r suspension system.

4. Detective terminals are installed on the tr--ning table panel. You can directly detect the electrical signals of the circuit elements of the --r suspension system on the panel, such as resistance, voltage, current, frequency signals, etc.

5. The tr--ning countertop is installed with fault indicators and diagnostic seats. It can achieve the system's self -diagnostic function through a short -wiring flashing fault code.

6. The base of the tr--ning platform is welded with steel structure, and the surface is treated with spraying process. It has a self -locking wheel device. It is flexible, safe, reliable, and durable.

7. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D. It can select 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

I. Overview

The heat pump technology is one of the effective measures for recycling and using low thermal energy. Studying and promotion of heat pump technology is of great significance to energy conservation. With the development of refrigeration technology in recent years, heat pump technology has been applied in my country. This device can perform the refrigeration cycle process and heat pump demonstration, which can observe the phenomenon of evaporation, condensation process and compressor working phenomenon of refrigeration work.

This experimental system uses the performance of the thermal balance method to measure the performance of the heat pump and the refrigeration compressor. The system is m--nly composed of refrigeration compressor, evaporator, condenser, constant temperature water tank, and electronic expansion valve. Use sensors and detection instruments to collect temperature, pressure, flow, flow, compressor power, current, frequency and other status parameters in the process of steam compressed refrigeration cycle. The self -developed data collection board card is connected to the computer. The measurement and control software with high real-time, interface design and humanization, and other characteristics of thermal cycle dynamic display, performance parameter testing and calculation of the thermal cycle process constitute a multifunctional integration heat pump-compressor performance experiment with testing, analysis, recording, testing, drawing and other functional integration system. Based on basic units, the following content is added: student design and innovative experiments.

2. M--n features

1. The compressor can be replaced;

2. Cold media (lubricant) can be replaced;

3. The pipe can be cleaned;

4. Electronic expansion valve can achieve self -programming control (verifying various control algorithms)

5. Different types of refrigerant physical parameters can be placed in the database in the form of electronic tables for calling; the experimental process and testing of the gas, refrigerant and irrigation device are used. , Can manually adjust the animation demonstration of the output frequency and the opening of the electronic expansion valve.

3. Technical parameters:

1. Input power supply: single -phase three -line ～ 220V ± 10% 50Hz 50Hz

2. Working environment: temperature -10 ℃ ～+40 ℃, relative humidity <85%(25 ℃), altitude <4000m

3. Device capacity: less than equal to 5.kva

4. Refrigerator: R134

5. Heating capacity: 4KW

6. Weight: 200kg
