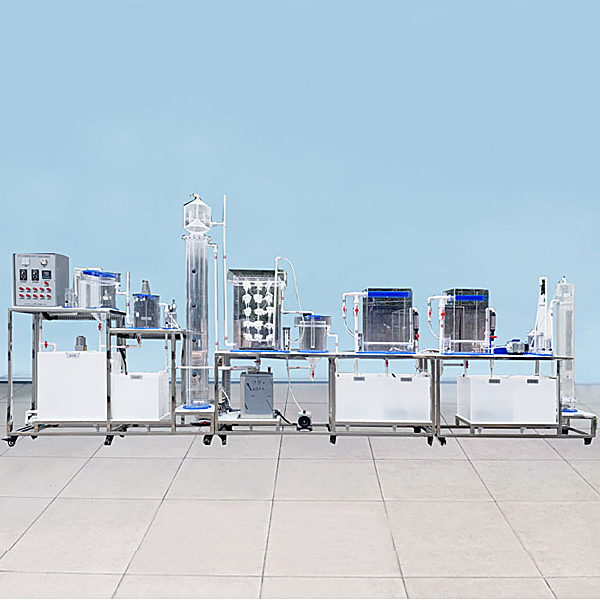

Pharmaceutical wastewater treatment basic process process training device

In order to understand the operation technology commonly used in pharmaceutical wastewater, master the processing process composed of these units, and observe the moves of wastewater, sludge, and --r during the treatment process. It is especially for the professional research and development of pharmaceutical wastewater treatment. The entire set of device is automatically controlled by the inflow of wastewater inflowing, adding drugs, aeration, anti -rinse, discharge, and sewage of its wastewater. Each device has a sampling port, monitoring the treatment effect of each section, and the connection of the entire set of equipment can also be used separately. The specific workflow is as follows:

2. M--n technical indicators and parameters:

1. The ambient temperature is 5 ℃ ～ 40 ℃;

2. Treat the water volume 10 ~ 20L/h;

3. Design in and out of water:

Design water quality: COD: 10000 ～ 15000mg/L, design water quality: COD ≤ 300 mg/L,

Design water quality: BOD5: 5000 ～ 7000 mg/L, design water quality: BOD5: 180-220 mg/L,

Design water quality: SS: 2000 ～ 2300 mg/L, design water quality: pH = 6.5 ～ 8.5.

Design water quality: pH = 6.5 ～ 8.5;

4. Total size of the device: length × width × height = 5800mm × 500mm × 1700mm

5. Work power: AC220V ± 10%, 50Hz, single -phase three -line system, power of 1500W, safety protection: ground protection, leakage protection, overcurrent protection

3. M--n configuration:

1. 1 original water tank: white PP plate material, 10mm thickness, 600 × 400 × 500mm, empty valve installed on the bottom plate, which is convenient for cleaning the water;

2. 1 water tank: white PP plate material, 10mm thickness, 400 × 400 × 500mm, empty valve is installed on the bottom plate, which is convenient for cleaning the water;

3. 1 set of paddles from the original water tank mixing motor, 304 st--nless steel mixing paddle; (power 25W, speed 120rpm), (including 1 tone speeder)

4. Chu Shenchi, transparent organic glass material, wall thickness 7mm, ø 250 × 300mm;

5. Mixed adjustment tank, transparent organic glass material, 7mm wall thickness, ø 250 × 300mm;

6. UASB lift -current anaerobic mud bed, transparent organic glass material, wall thickness 10mm, ø 200 × 2000mm;

1 set of st--nless steel heating constant temperature water baths, heating constant temperature water set (generally m--nt--n 35-45 degrees), 1 circulating constant current water pump (maximum r--sing 10m, rated traffic 12L/min, power 90W), 1 set of temperature control system (control system control system (control system Temperature precision: ± 1 ℃), 1 PT100 temperature sensor;

7. Bio -contact oxidation pool, organic glass material, wall thickness 10mm, 400 × 350 × 650mm, aerated --r exposure device, semi -soft filler,

8. Er Shenchi, transparent organic glass material, 7mm wall thickness, ø 250 × 300mm
