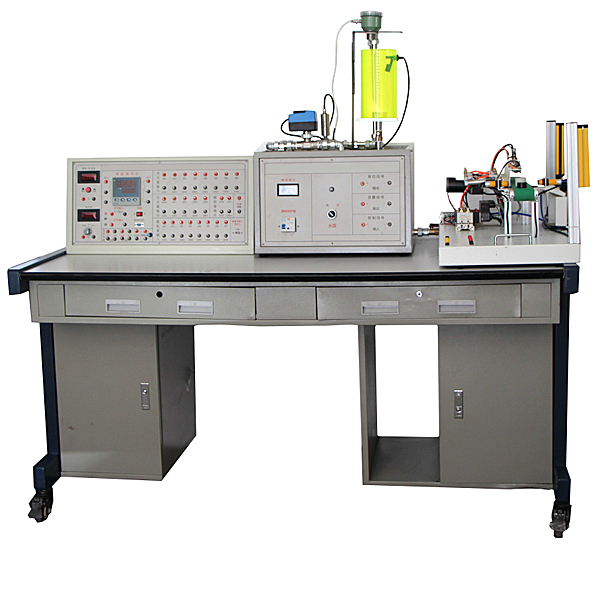

Industrial sensor detection and innovation experiment desk



1) Control screen



Provide high -stable ± 15V, + 5V, ± 2V ~ ± 10V adjustable, + 2V ~ + 24V adjustable eight types of DC voltage voltage power supply; the m--n control table panel is also equipped with voltage, frequency, and speed display. Audio signal source (audio oscillator) 1kHz ~ 10kHz (adjustable); low -frequency signal source 1Hz ~ 30Hz (adjustable); 1. AC power supply AC220V, with leakage protector; DC voltage voltage power supply:+24V/1A, ± 12V /1A, ± 5V; digital DC voltage gauge: 0-20V, divided into 200MV, 2V, 20V three gear, accuracy 0.5 frequency/speed list: frequency measurement range 1 to 9999Hz, speed measurement range 1 ～ 9999rpm



3) The transmitter hanging



1. Charge amplifier; range: 102pc, 103pc, two gears, maximum output voltage: 10V/5mA;



2. Output g--n: 10MV/UINT, 100MV/UINT can be adjusted, which is supported with the piezoelectric acceleration sensor;



3. Axial-oriented transition Delivery: Volume: -4 ～ 6mm, current output: 4 ～ 20mA, accuracy: ± 0.5%(25 ℃); frequency response: 2 ～ 5kHz, system temperature drift: ± 0.1%/℃ , Power: 24VDC;



4. Pressure instrument: Use 24 -bit A/D converter, double 5 -bit high brightness red LED display, measurement accuracy: ± 0.2%F.S ± 1 word; communication with RS232, use S -type pull -up pressure sensor to support the use



4) Data collection card hanging box



1. High -speed USB data collection card, the collection card supports the maximum sampling frequency of 400kHz, 12 -bit A/D conversion



2.8 Input of the simulation quantity in the road, the output of the 2 -channel analog, the signal output range: -5V ～ + 5V voltage signal



Signal output interface: Standard BNC interface 16 channel switch input, 16 channel switch input; output method: setting power opening output; maximum output current: 0.5A 5 switch volume output;



3. Supporting software, which can achieve automatic control of material sinction, measurement of multi -function rotor, liquid level flow measurement, displacement measurement, temperature measurement control



4. The upper machine software uses MCGS full Chinese industrial control configuration software to achieve online detection, control, parameter modification, data storage analysis, real -time curve and historical curve display and printing. The upper machine driver has LABVIEW. This device can bear the student graduation design instructor to encourage students to carry out innovative design according to the experimental conditions. At the same time, the laboratory is opened to make the laboratory facing the students of the whole school and make them a base for students' graduation design; Students provide experimental conditions for related topics.

Experimental project content:

The purpose of the experiment is to use the experimental object, that is, the full process of the dynamic balance of the rotor, and the necessary hands -on operations, so that students can basically master

1) Basic concepts of rotating dynamic balance

2) Understand the principles of dynamic balance and work

3) The operation method of determining and application of dynamic balance during the dynamic balance of the rotor



M--n functions and characteristics:

1) Virtual intelligence test instrument interface, virtual instrument technology is used to make the interface beautiful, image, and friendly. The experimental results are displayed at the same time in numbers, curves and graphics. The experimental process is vivid and easy to operate;

2) The balance of hard support is settled by A, B, and C. The permanent standard has six support methods;

3) Real -time prompts of exercise status, panel with LED speed display;

4) Have the set function of the surplus unsatisfactory measurement, automatic prompts to qualify;

5) Dynamic process experiments can be performed. This system can not only staticly display the experimental results, but also perform continuous dynamic process experiments. During the experimental rotation, three window pupae were opened through the m--n interface of the data analysis. At the same time, the curve of the post -signed signal filter, the actual eccentric volume distribution diagram, and the actual phase distribution diagram were dynamically displayed. By observing the changes in the dynamic curve, students can understand the principles, methods, and results of the dynamic balance experiment more deeply;

6) The system is strong, and the computer user interface can choose different roller structures for testing experiments;
