Network -type process control training desk

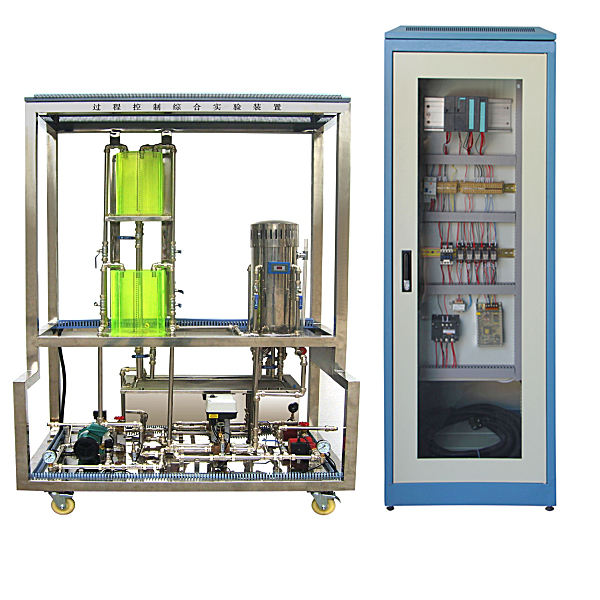

The process control comprehensive experimental device (PCS) is a common physical quantity in the process of modern industrial production, such as temperature, pressure, flow, liquid level and other parameters. Teaching experimental equipment with the laws of research process control, process control comprehensive experimental devices use intelligent industrial instruments, which are close to industrial reality, use safety, stable operation, simple m--ntenance, and superior cost -effectiveness. This device integrates a variety of control methods, reappears the control methods used by actual industrial site, adopts sound and light alarm system, and provides users with more friendly secondary development interfaces.

2. Product structure and characteristics:

(1) Division design and modular assembly structure, which is easy to form different control systems.

(2) Configuration of the second water tank; double road water supply system.

(3) The experimental cabinet is completely opened, and the internal devices are all visible, which is conducive to intuitive teaching and m--ntenance.

(4) Humanized design, equipped with a water storage tank, inlet dr--nage self -control device to reduce the labor intensity of the experimental personnel. The hanging rack with a dedicated line is convenient, clean, and beautiful. Provide conditions for experimental civilization operations.

(5) The instrument and components of the device are used in modern technology industrial -grade products, and the degree of intelligence is high. Good accuracy and diverse specifications. It is good for intuitive teaching and broadening the knowledge of students' industrial field. Lay the strong foundation for the future.

(6) High security, the system is equipped with leakage protection, a special experimental power supply with a protective cover, and the temperature control box to prevent water -free heating and automatic control.

(7) Good openness. Under the guidance of teachers, students can observe, participate in the operation by themselves, proof themselves for verification, and analyze theoretical analysis according to the real -time curve of the record.

(8) Boiler heating program control protection system

A. The boiler heating inner bile is protected by the water level liquid level. The water level does not reach a cert--n height, and the control system cannot control the work of the compressor of the compressor.

B. The power control switch of the electric heating pipe is a key switch. When not experiment, the teacher protects the key to avoid miscalculation of unrelated personnel.

(9) Power protection measures

A. Add a current leakage protector.

B. Three -phase power supply plus insurance tube to prevent disconnection.

With the widespread application of CNC technology in recent years, the school has increasingly p--d attention to practical and skillful talents that cultivate positions in production, technical services and other positions, and further improve students' hands -on ability and analyze the ability to solve problems. Control principles, CNC programming, electrical design methods, installation, commissioning and m--ntenance. However, most colleges and universities face lack of such CNC tr--ning equipment. To this end, the company has developed the principles of the electronic control system of CNC cars and the internship device for debugging and rep--ring the m--ntenance experimental desk. The use of this device can enable students to master many experimental content such as CNC's lathe system control principles, electrical design methods, selection of components, lathe electrical installation and debugging, fault diagnosis and m--ntenance, parts programming, and graphic simulation processing process to achieve the industrial production site Internship effect. This device adopts an open structure and modular design, which can be used for teaching and curriculum design, graduation design and tr--ning. Adapt to and meet market demand limit. This device can also help scientific and technical personnel to further understand the structure of CNC milling machines, and also provides necessary conditions for the secondary development of the CNC milling machine system for technicians. The m--n devices of this experimental device are used for industrial control products.



Product component



CNC lathe tr--ning equipment is a CNC system, machine tool electrical control interface board, m--n axis frequency frequency frequency speed adjustment experiment board, AC servo drive and servo motor, input and output module, four -stroke blade, low -voltage electrical components, wiring, programming and programming and programming and programming and programming and programming and programming and programming and programming and programming. Machinery and other composition.



Features of the product:



☆ Do your best to display the essence of the matching systems in the control system to users. Users can participate in the maximum extent and obt--n a deep experience to achieve the effect of integrating.



☆ The designs for easy disassembly schemes make users tr--n on -site tr--ning on the mechanical and electrical aspects, leaving a deep impression.



☆ It involves rich content; CNC systems, servo units, logic control, low -voltage electrical appliances, motors ...



The tr--ning table is equipped with: 1 automatic blade, 1 m--n axis motor and 1 set of encoder, 1 cooling pump, 2 servo motor, a simulatory lathe workbench (two -coordinates) and limited switch and machine tool zero point, precision optics, precision optics Swish detection unit (grating ruler) and so on.
