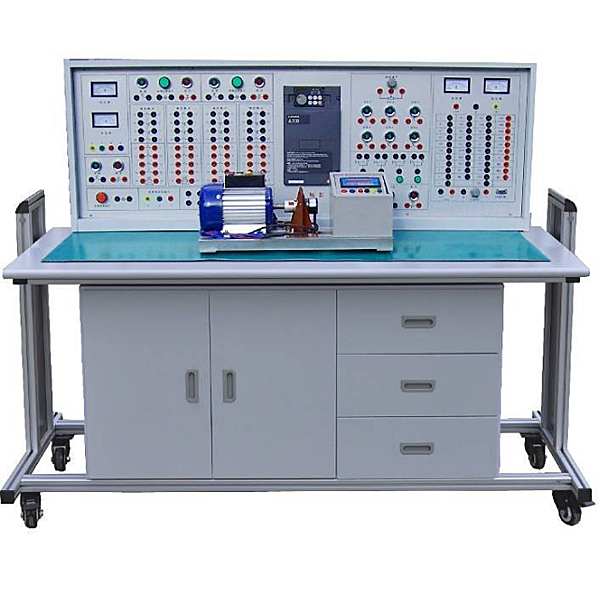

Inverter speed regulation system experimental device



This device uses a typical high-performance and multi-function FR-A740 variable frequency frequency frequency speed regulator (380V, 0.75kW) as the host, and the outer pulse coder electrical mechanism speed measurement system. The entire device can complete all functional experiments of the opening and closed -loop system and the frequency conversion speed. The open structure allows students to comprehensively learn and master the structure principles of frequency adjustment speed, detection and m--ntenance. It is suitable for large and high school colleges, vocational schools, and technical school automation professional supporting teaching and open experiments



2. Technical parameters of the experimental table:



1. Input power supply: AC380V ± 5 % 50Hz 2. Rating current: 3A

3. Environmental temperature: -5 ℃ ～ 40 ℃ 4, appearance size: 1600 × 700 × 1250mm

5. Relative humidity: ≤90 % (25 ° C) 6. Variables: FR-A740-0.75K



3. Product composition:



1. Experimental desk: Install all electrical components, instruments, switches, etc. of the experiment, to make the overall solid, beautiful and practical, and convenient experiments.



2. Experimental load motor: Use three -phase different step motors.



3. Experimental wires: All the plug -in plug -in uses a secure type plug, which provides very high security for students' experiments. The experimental plug is convenient and fast.



4. 1 p--r of motor r--ls and photoelectric encoders



5. Experimental table: one and two.



Fourth, experimental table: aluminum and wood structure, the desktop is fire, waterproof, wear -resistant high -density board, and beautiful shape. The high -quality aluminum alloy made of special molds is used as a framework. The surface of the aluminum alloy is oxidized, durable, beautiful and generous, in line with modern aesthetics. The desktop is fire, waterproof, wear -resistant high -density board, and the lower part of the table is equipped with a storage cabinet.

The tolerance coordination and technical measurement are a very important technical basic course, skills and application courses for mechanical majors. It is an important technical requirement on the design drawing of mechanical parts, and it is also an important part of the static and dynamic geometric accuracy of mechanical products. With the development of science and technology and the improvement of production level, the geometric accuracy of mechanical products has also made increasing requirements. The geometric accuracy has formed an independent technical discipline, and it is subject to the academic and engineering and technical circles. The people attach great importance to it.

This series of installations are based on the actual requirements of design engineers for the actual requirements of accuracy design, on the premise of actual teaching situation and teaching object conditions, and carefully developed a set of teaching products combining theory and reality. It is suitable for parts of ordinary high schools, employee middle schools, vocational middle schools, vocational schools and undergraduate colleges.

Tr--ning item

Tr--ning 1: Measurement and detection of parts of parts of parts

1. Str--ght degree measurement and detection;

2. Plane degree measurement and detection;

3. Tir -cylindrical measurement and detection;

4. Round measurement and detection;

Tr--ning 2: Measurement and testing of parts position error

1. Parallel measurement and testing

2. Vertical measurement and detection

3. Simparies measurement and detection

4. cylindrical beating measurement and testing

5. Facial beating measurement and testing

6. Symmetry measurement and detection
