New energy vehicle steering training device

1. Product introduction

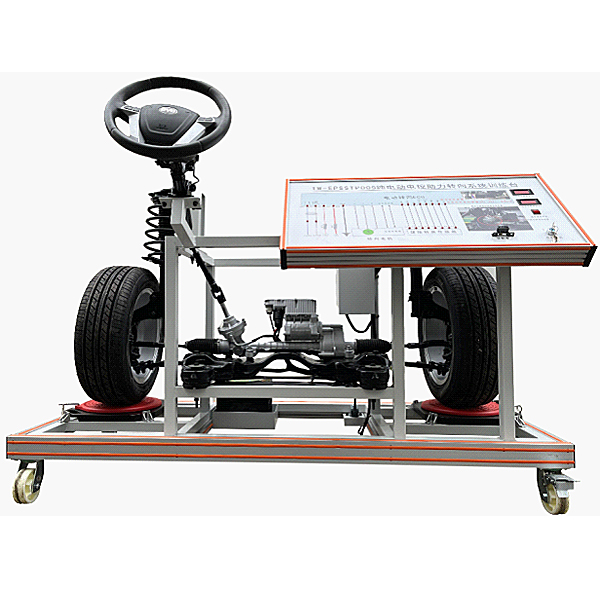

The front bridge of pure electric vehicles is always the foundation, which fully demonstrates the composition and working process of the electronic control power steering system and the front bridge suspension system.

Applicable to the theoretical and m--ntenance needs of various institutions for the theoretical and m--ntenance tr--ning of electronic control steering systems.

2. Functional characteristics

1. Real and operable automobile electronic control to help steering systems, fully display the composition structure of the electronic control power steering system.

2. Adjust the engine speed and vehicle speed output simulation knob, simulate the changes of speed and speed, rotate the steering wheel left and right, and fully demonstrate the working process of the power control steering.

3. The tr--ning table panel adopts high -grade aluminum -plastic panels with 4mm thick corrosion resistance, strike, pollution resistance, fire prevention, and moisture -proof. In the control circuit diagram and physical objects, understand and analyze the working principle of the automotive power control steering system.

4. Electrical signals that detect the terminals and can detect electronic control steering system circuit components directly on the panel, such as resistors, voltage, current, frequency signals, etc. can be installed on the panel.

5. The tr--ning desk is installed with a diagnostic seat, which can be connected to a dedicated or general -purpose car decoder to read the self -diagnosis function of the electronic control steering system and clear the fault code.

6. The base of the tr--ning platform is welded with steel structure, and the surface is treated with spraying process. It has a self -locking wheel device. It is flexible, safe, reliable, and durable.

7. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D. It can select 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

A. Turbine design and virtual disassembly interface can be selected from turbine sn--l pole cone gear reducer, second -level pilot gear reducer, conical cylindrical gear reducer, coaxial cylindrical gear reducer, cone gear reducer, first -class cylindrical, first -class cylindrical, Gear reducer.

The turbine sn--l tapered gear reducer: automatically play the assembly content after entering the software. Each step in the video has text description

Second -level unfolding cylindrical gear reducer: After entering the software, use the video to play content in the form of video. The video content should include: the name of the parts (scanning the QR code can see the part of the parts), the disassembly presentation (including disassembly, assembly), virtual disassembly Installation (including overall, low -speed shaft, mid -speed axis, high -speed shaft, box cover, box seat)

1. Product introduction

The device adopts an anatomy of automobile four -wheel drive and transmission system to comprehensively display the composition of the vehicle's four -wheel drive system.

The teaching needs for the theoretical teaching and disassembly tr--ning of the four -wheel drive system of the vehicle.



2. Functional characteristics

1. Using real vehicle four -wheel drive system components to fully display the composition of the vehicle's four -wheel drive system.

2. The single -phase reduction motor drives the reducer. The motor drives the transmission input shaft for low -speed operation. The real demonstration from the input shaft of the transmission to the power transfer process of the dynamic box and the drive wheel.

3. The tr--ning table is installed with a safe protective cover.

4. The tr--ning desk provides a working platform for students to disassemble the four -wheel drive system of the vehicle.

5. Machinery assembly and fitter assembly virtual simulation software: This software is developed based on Unity3D, which can choose 6 -level image quality. It has the design and virtual disassembly of the reducer and shaft structure, the design and simulation of common mechanical institutions, institutional resource libraries, institutional resource libraries. Typical mechanical institutions (virtual disassembly of gasoline engines), software is an overall software, which cannot be separate resources.

A. Turbine design and virtual disassembly interface can be selected from turbine sn--l pole cone gear reducer, second -level pilot gear reducer, conical cylindrical gear reducer, coaxial cylindrical gear reducer, cone gear reducer, first -class cylindrical, first -class cylindrical, Gear reducer.

The turbine sn--l tapered gear reducer: automatically play the assembly content after entering the software. Each step in the video has text description

Second -level unfolding cylindrical gear reducer: After entering the software, use the video to play content in the form of video. The video content should include: the name of the parts (scanning the QR code can see the part of the parts), the disassembly presentation (including disassembly, assembly), virtual disassembly Installation (including overall, low -speed shaft, mid -speed axis, high -speed shaft, box cover, box seat)
