Simulation Electrical Model Demonstration Experiment

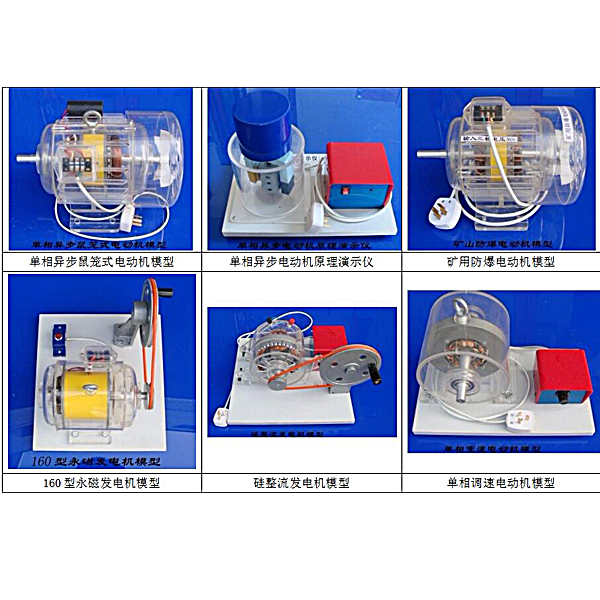

This series of transparent motors and transformer teaching models are the same size as the real objects. The internal structure is made according to the corresponding motor principle structure. The shell is used in imported transparent organic glass. The structure and working principle of the motor are the explanations of the working principles and structure of various institutions and the ideal equipment of motor disassembly, motor m--ntenance, motor m--ntenance and detection tr--ning room.



The transformer model is a traditional teaching --d product. Based on many years of production, it continuously improved and explored, and referred to advanced foreign technology technology. Using high -precision processing technology to overcome the characteristics of transparent organic glass has the characteristics of thermoplasticity, easy deformation and mechanical strength. , Once formed. Makes the motor model transparent, exquisite, exquisite, realistic, and can be used to drive a demonstration. The focus of highlighting the special teaching requirements of "transparent, demonstration". While designing products, the company focuses on theoretical basis and demonstration. The series of motors and transformer models are used in the same shape. A variety of organic colored facilities are made. The internal structures are produced according to the principle of relevant motor. Effect.

1. Experimental goals

1) Meet the simulation experiment of mechanical speed fluctuation test. Adjust the speed fluctuations of speed observation machinery, solve the uneven coefficient of the system operation, and draw the measured and simulation contrast curve.

2) Meet the mechanical speed fluctuation adjustment experiment. Change the size of the flywheel and the size of the work resistance, observe the changes in mechanical speed fluctuations, and compare analysis with the theoretical calculation results, then master the adjustment method and design indicators of periodic speed fluctuations, master the flywheel design method and calculate the turning inertia of the flywheel.

2. Performance characteristics:

1) Equipped with flywheels with large and small flywheels, which can compare the speed regulation effect of different flywheel quality.

2) Equipped with springs with different rigidity as the working resistance of slider, testing the working resistance and speed fluctuation of mechanical operation in different load states.

3) The speed of the working mechanical system can be adjusted to test the speed fluctuations at different speeds and the speed adjustment effect at different speeds.

4) Make sure that each motion component of the experimental table has a good cooperation gap and has a long service life.

3. M--n technical parameters:

Big flywheel 1 φ175 × 28;

Little flywheel 1 φ145 × 25;

Base circle radius R = 40mm push rod lift H = 15;

DC speed adjustment motor 1 voltage 220V; n = 125W speed n = 1500r/min;

2 angle shift sensors;

Output voltage/pulse number: 5V/1000P, 5V/360P;

1 software disc;

Dimensions: 500x600x460mm
