ZOPJXM-D Institution Sports Movement Specification Drawing and Mapping Training Device

The mechanism sports brief map surveying and mapping model (comprehensive type), mechanical diagram testing and drawing teaching aids, uniform paint paint and brackets of each model, color division processing, beautiful and generous (such as the bottom plate). Sports component mechanical precision processing, high installation accuracy, flexible mechanism movement.

is used for the "Mechanism Movement Simplified Diagram Surveying and Analysis Experiment" in the Mechanical Principles course. The workpiece is beautiful and elegant, with high precision in finishing and assembly, and the moving components are flexible and free of interference.
M*n technical parameters:
1. Model material: made of aluminum alloy material or real object.
2. The moving components are mechanically finished, with high installation accuracy and flexible movement of the mechanism.
3. The base plates and brackets of each model are p*nted uniformly, and the moving parts are color-coded to make them beautiful and elegant (if there is a base plate).

Comprehensive type 50 pieces

D1. Overlay mechanism	D26.Linear motion mechanism
D2. Hyperbolic mechanism	D27. Connecting rod ratchet mechanism
D3.Inner sheave mechanism	D28. Differential screw mechanism
D4.Roller push rod heart-shaped cam mechanism	D29. Slide shaft joint mechanism
D5. Helical gear transmission mechanism	D30.Three flat rod transmission mechanism
D6.Reducer	D31.Universal joint
D7. Gear intermittent mechanism	D32.Double punch mechanism
D8.2K epicyclic gear tr*n mechanism	D33. Eccentric cam mechanism
D9. Crank rocker mechanism	D34. Eccentric reciprocating mechanism
D10. Heart-shaped grinding wheel mechanism	D35.Emergency return to the institution
D11. Sector gear mechanism	D36. Oval gear mechanism
D12. Friction wheel mechanism	D37.2K－H epicyclic gear tr*n mechanism
D13. Sine mechanism	D38. Three-speed gear transmission mechanism
D14.Linear groove wheel mechanism	D39. Worm gear transmission mechanism
D15.Planetary mechanism	D40. Reciprocating cylindrical cam mechanism
D16. Equal diameter cam mechanism	D41. Sheave mechanism
D17.45° spiral wheel transmission mechanism	D42.Robot climbing mechanism
D18. Conical spur gear transmission mechanism	D43. Swing guide rod emergency return mechanism
D19. Gear drive reciprocating mechanism	D44.Feedback mechanism
D20. Space agency	D45.90° helical gear transmission mechanism
D21.Safety clutch mechanism	D46. Differential
D22. Gear linkage mechanism	D47. Flexible shaft transmission mechanism
D23. Swing slider mechanism	D48. Motion synthesis mechanism
D24. Ellipsometer	D49. Eccentric speed regulator mechanism
D25.Involute cam mechanism	D50. Planetary mechanism II

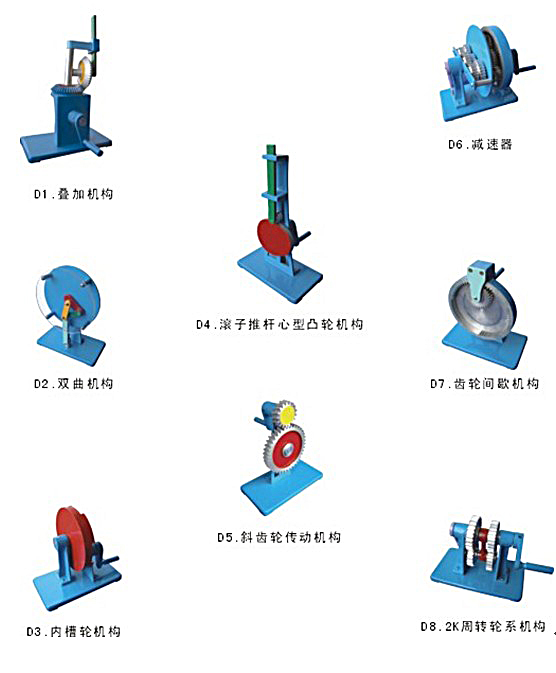

ZOPJXM-D Institution Sports Movement Specification Drawing and Mapping Tr*ning Device(图1)
