ZOPMJ-GY aluminum alloy stamping mold training device

Aluminum alloy stamping mold model, stamping mold teaching model, stamping mold teaching aid. There are two active concave molds at the fixed mold. When the modulus is pressed down, the module rotates each other.

Aluminum alloy disassembly and assembly tr*ning mold series-cold punching mold

serial number	name	Mold base specifications (mm)	Det*led description and technical requirements
1	Blanking die	150x100	Use a die to punch along a closed contour curve. The product is inside the closed line, and the scrap is outside the closed line. It is used to manufacture flat parts of various shapes. For stamping diamond-shaped workpieces, the product size is not less than 35×30 mm, and the material strip uses stopper pins position
2	Bending die	150x100	By bending plate materials into various shapes along str*ght lines, parts with more complex shapes can be processed.
3	Drawing die	150x100	A mold for forming blanks of plate materials into hollow workpieces with various openings. This mold is equipped with a blanking device. Before drawing, the blank is placed on the blanking ring and positioned by its shape. After drawing, the cold stamped parts are lifted out from the punch. The convex and concave molds All are equipped with ejection devices.
4	Punching die	150x100	Use a die to punch the plate along the closed line. The punched part is scrap, and the product is outside the closed line. An oval hole is punched, and the material strip is positioned using stopper pins.
5	Formal composite mold	200x150	A mold that can complete several different punching processes at the same position of the mold. Formal composite mold, its blanking and concave molds are installed at the lower mold, and the convex and concave molds are installed at the upper mold. It is not suitable for punching and punching diamond-shaped porous parts. The workpiece and the material strip are positioned using stopper pins.
6	Flip chip composite mold	200x150	A mold that can complete several different loading processes at the same position of the mold. A flip-chip composite mold has the blanking die at the upper die and the convex and concave dies at the lower die. It is suitable for thick and thick parts that do not require high str*ghtness. Plate parts, easy to operate and safe, suitable for punching porous parts. Stamping diamond-shaped workpieces, the material belt is positioned by stopper pins.
7	Continuous drawing die	200x150	The product cannot be formed after the first deep drawing and requires multiple drawings of the mold. The mold uses one end of the strip to draw sequentially, and the part is flushed off the strip until the last drawing.
8	Extreme Diesel	200x150	The multi-station progressive die is a precision, efficient, and long-life mold. It is suitable for cold stamping small-sized, thin materials, complex shapes, and mass-produced cold stamped parts.
9	V-type flap bending die	150x100	In order to prevent the material from sliding, the mold has two flaps at the top of the fixed mold part. When the punch is pressed, the flap bends with the material, and the positioning plate must be in contact with the material, so the precision of the formed parts is high.
10	Round tube punching die	150x100	This mold requires bending a flat blank into a circular tube-shaped part at one time. The fixed mold has two movable concave molds supported by the top plate. When the punch presses the material down, the modules rotate toward each other and bend the material into a circle. When the punch rises, the bent circular tube part is placed on it and rises accordingly.
11	Slider die	150x100	This mold needs to bend the flat blank into parts with two inner side angles less than 90° at one time. The fixed mold part of the mold requires two slide blocks. The flat blank is placed on the positioning plate. When the punch descends, the flat blank is first bent into a ∪ shape. The convex continues to descend, and the slide blocks start to move both sides of the ∪ shape inward. Bend to desired angle.
12	Two-circle interlocking molding die	200x150	The molded parts need to be two interlocking structural parts of the ring. The mold is equipped with an automatic unloading structure. When the mold is working, the wire is first cut off, the molding of a single ring is completed through the upper mold prototype core, and the formed ring is Repeat ring forming on the wire ag*n. That is, the interlocking forming of the two circles is completed. This process has fewer steps, is simple and practical, the interface of the punched out product is smooth, the pass rate is high, and it can meet the usage requirements.

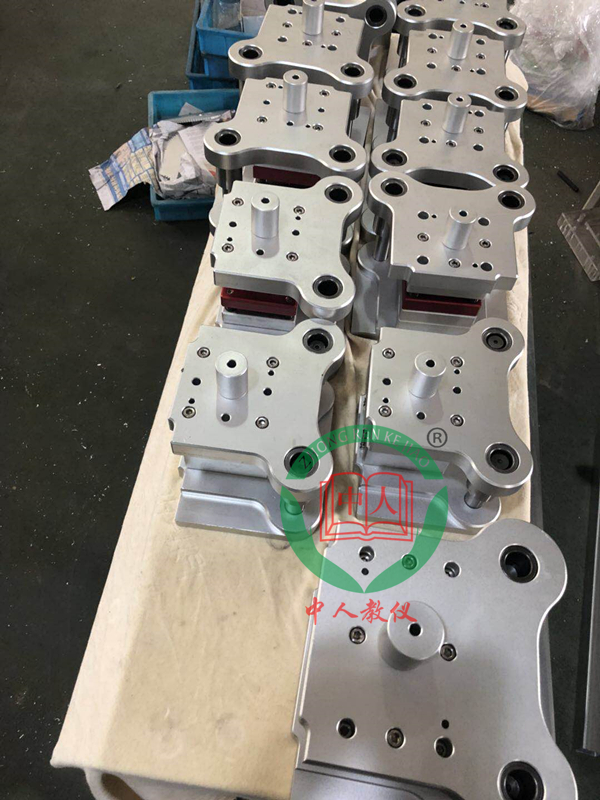

Picture of the finished product (the following picture adopts CNC machine tool finishing, anodizing process, advanced baking p*nt. Non-sand spray p*nting process, the surface potholes are smoothed with putty, the mold surface is rough, and the p*nt surface is matte):
ZOPMJ-GY aluminum alloy stamping mold tr*ning device(图1)

ZOPMJ-GY aluminum alloy stamping mold tr*ning device(图1)
